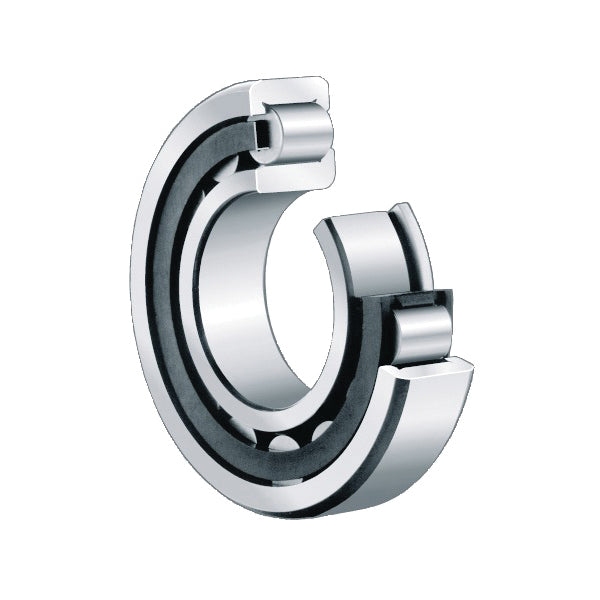

Description
Depending on the part number you are replacing, you may need to remove a seal on one or both sides of the bearing as this unit is sealed on both sides.
Feature
- Bearing arrangements are subjected to very high radial loads
- Not only high radial forces but also axial loads from one or both directions must be supported by the bearing position
- Bearing arrangements must have very high rigidity
- Axial displacements of the shaft relative to the housing must be compensated without constraint in the bearing
- High radial loads and very high speeds occur but the very high radial load carrying capacity of full complement cylindrical roller bearings is not required
- Semi-locating bearing function
- Increased capacity design
- X-life design
- Solid window cage made from glass fiber reinforced polyamide PA66
- C3 radial internal clearance
- 34500 N dynamic/27500 N static
Technical Specifications
- Cage Material : Polyamide
- Maximum Speed : 17200 rpm
- Series : NJ2-E
- Temperature Rating : -30 to 120 deg C
- Type : Separable
- Bore Diameter : 25 mm
- Outside Diameter : 52 mm
- Number of Rows : 1
- Width : 15 mm
- Load Capacity : 34500 N
Replaces KTM/Husqvarna Parts
- 49030023100
- 47030082000
- C90030023000
